The interconnect product range from AC Photonics is backed by use of high-quality fibre optic cables and connectors with a flexible approach to customised solutions whilst maintaining short lead-times.
The patch cords, sometimes referred to as optical fibre jumpers, are available using multi-mode (MM), single mode (SM) and polarisation maintaining (PM) fibres.

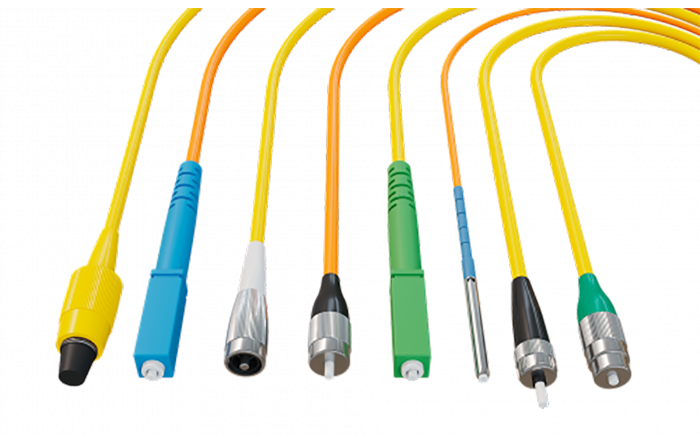

Standard connectors include FC, SC, ST, LC, MU in both simplex and duplex configuration. Special connectors (E-2000, F-3000 etc.) and PC/UPC/APC types are also readily available.
![Interconnect – Fibre Optic Patch Cords](https://acalbfi.b-cdn.net/media/png/AC-Photonics-interconnect-fibre-optic-patch-cords-PI.png)
Range features
A high level overview of what this range offers
- High Return Loss (RL) and low Insertion Loss (IL) performance
- Stringent mechanical and environmental test conditions to ensure minimum loss variation
- Connector types: Polished Connector (PC), Ultra Polished Connector (UPC) and Angled Polished Connector (APC)
- Price / performance (reliability and stability) ratio cannot be compared to low-cost, sub-standard patch cables
- Typical uses where mission critical performance is essential include telecommunication systems, CATV networks, long-haul and core fibre optic networks
- PM connector axis alignment to slow axis, fast axis, slow axis 45° to key or key unlocked
- Pigtail styles to include bare fibre, 900 µm loose tube, 900 µm tight buffer or 1.6/2/3 mm jacket
What’s in this range?
All the variants in the range and a comparison of what they offer
Patch Cord Fibre Type | IL – PC FC-SC-LC / ST-MU (dB) | IL – UPC FC-SC-LC / ST-MU (dB) | IL – APC FC-SC-LC / ST-MU (dB) | RL – PC (dB) | RL – UPC (dB) | RL – APC (dB) | ER (dB) |
---|---|---|---|---|---|---|---|
SM | 0.2 / 0.25 | 0.2 / 0.25 | 0.2 / 0.30 | 40 | 50 | 60 | n/a |
MM | 0.2 / 0.25 | n/a | 0.2 / 0.30 | 30 | n/a | 35 | n/a |
PM | 0.2 / 0.25 | 0.2 / 0.25 | 0.2 / 0.30 | 40 | 50 | 60 | 20 |
