Surface Mount Industry Standard Clock Oscillators
- Technology
- Oscillators
- Partner
- Epson
The Epson line concentrates on standard frequencies in industry recognised packages from the miniature 2×1.6mm to the mature but still widely used 7x5mm. The specifications are perfect for today’s industrial requirements with 50ppm @ -40°C + 85°C as standard, temperature ranges available to 105°C, stability down to ±25ppm, the lowest power consumption and programmable SPXOs with low power and attractive jitter / phase noise serving the non-standard requirements.

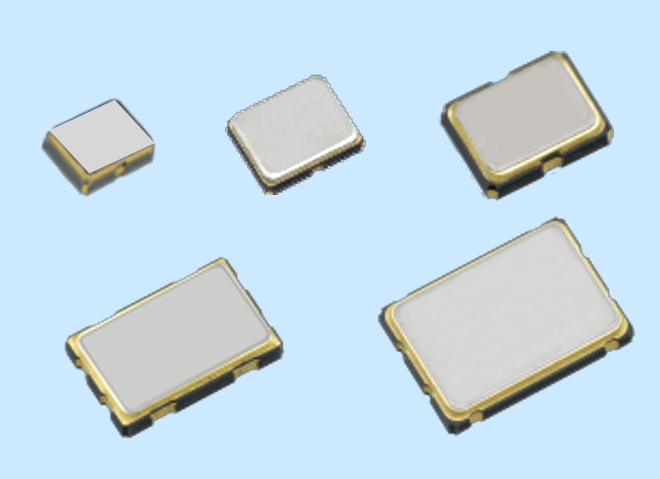

SG2016CAN. The smallest oscillator in the family, 2×1.6mm but still available in the same standard frequencies (available on request), has a supply voltage from 1.8-3.3V and options for tighter stability or wider operating temperature ranges.
SG210STF. Perhaps now the most common ‘go to’ size for surface mount oscillators. This CMOS output 4 pad clock is very popular.
SG3225CAN, SG5032CACN, SG7050CAN. 3.2×2.5, 5.2×2.5 & 7x5mm respectfully have seemingly been around forever. Still widely used in a variety of applications where space is not critical so paramount in the series and with all the features of their smaller counterparts.
Range features
A high level overview of what this range offers
- List of standard frequencies available in fixed frequency oscillators
- Main industry standard surface packages catered for from 2×1.6mm -7x5mm
- Programmable option for non-standard frequencies, with low power, attractive jitter/phase noise
- Most cater for Supply Voltage 1.8V through 3.3V
- 50ppm -40+85 as standard
- Extended temperature ranges an option to +105ºC
- High stability options possible
- Low power consumption
What’s in this range?
All the variants in the range and a comparison of what they offer
| Epson series | Package (mm) | Output | Frequency tolerance (ppm) | Supply voltage |
|---|---|---|---|---|
SG2016CAN | 2.0×1.6 | CMOS | ±25ppm/-20+70℃ ±50ppm/-40+85℃ ±50ppm/-40+105℃ | 1.8 V to 3.3 V |
SG210STF | 2.5×2.0 | CMOS | ±25ppm/-20+70℃ ±50ppm/-40+85℃ ±50ppm/-40+105℃ | 1.8 V to 3.3 V |
SG3225CAN | 3.2×2.5 | CMOS | ±25ppm/-20+70℃ ±50ppm/-40+85℃ ±50ppm/-40+105℃ | 1.8 V to 3.3 V |
SG5032CAN | 5×3.2 | CMOS | ±25ppm/-20+70℃ ±50ppm/-40+85℃ ±50ppm/-40+105℃ | 1.8 V to 3.3 V |
SG7050CAN | 7×5 | CMOS | ±25ppm/-20+70℃ ±50ppm/-40+85℃ ±50ppm/-40+105℃ | 1.8 V to 3.3 V |
