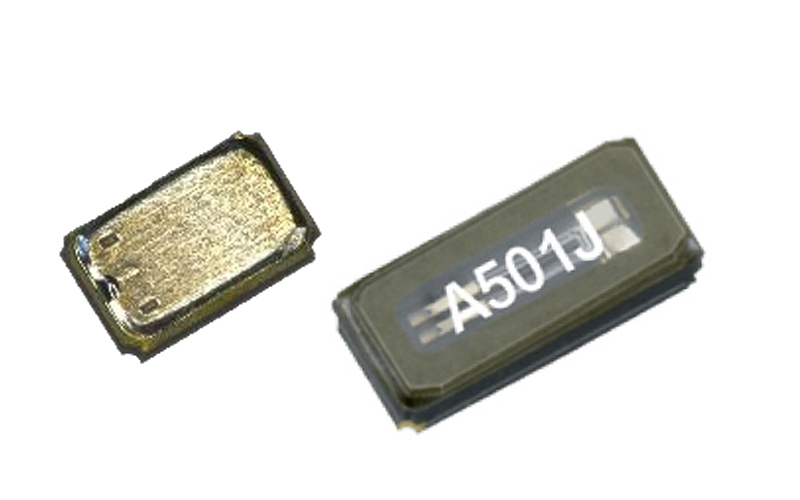

Epson offers a vast range of 32.768kHz watch crystal products. Their focus and recommended models for new designs are sub miniature series that offer a wide range of options. Larger packages are available, please enquire.
FC1610AN (1.6×1.0mm) . Smallest in the range, ideal for compact communication devices. Available at +/-20ppm with either 9pF or 12.5pF load capacitance.
FC-12M (2.05×1.2) . Predominately a 32.768kHz device but available in other kHz frequencies too. +/-20ppm or +/-30ppm options with 12.5pF load capacitance. A low ESR version (FC2012AN) in this size is also available.
FC-135 (3.2×1.5) . Now an industry standard. +/-10ppm and +/-20ppm (std) available in a variety of load capacitances either 7pF, 9pF or 12.5pF. An automotive qualified AEC-Q200 version (FC-13A) and low ESR option (FC-135R) are options in this 3.2×1.5mm series too, giving great flexibility.
.
Range features
A high level overview of what this range offers
- Ideal for small applications
- Various package sizes available 1.6×1.0mm through to 8×3.4mm
- +/-10ppm tolerance available on request
- Automotive AEC-Q200 extended temperature range options
- Most series offer a range of load capacitance
- Low ESR selected crystals available
- Other kHz frequencies possible on request
- ROHS Compliant devices
What’s in this range?
All the variants in the range and a comparison of what they offer
| Epson series | Package (mm) | Frequency (kHz) | Frequency tolerance (ppm) | Operating temperature range (°C) |
|---|---|---|---|---|
FC1610AN | 1.6 x 1.0 x 0.5 | 32.768 | ±20 | -40 to +85 |
FC-12M | 2.05 x 1.2 x 0.6 | 32.768 32.00 – 77.5 | ±20, ±30 | -40 to +85 |
FC2012AN | 2.05 x 1.2 x 0.6 | 32.768 | ±20 | -40 to +105 |
FC-135 | 3.2 x 1.5 x 0.8 | 32.768 32.00 – 77.5 | ±10, ±20 | -40 to +85 *contact for up to +105 |
FC-13A (AEC-Q200) | 3.2 x 1.5 x 0.8 | 32.768 | ±20, ±30, ±50 | -40 to +125 |
